312 Core Wall Mount Fiber Optic Splice Closure DOMO Type IP68 Waterproof

Brand Name : ANSHI

Model Number : AS-FOC-GPJ-2

Certification : SGS, ISO9001

Place of Origin : ZHEJIANG, CHINA

MOQ : 100

Price : Negotiable

Supply Ability : 5000pcs/week

name : optical fiber cable joint closure

Cable Capacity : 312 core

Material : PP

type : DOMO type

Cable entry ports : 6 small & 1 big

Splice tray : max 26 PCS

Contact Now

312 core Wall Mount Domo Fiber optic Splice Closure FTTH IP68 Waterproof Fiber Optic Joint Closure

Description:

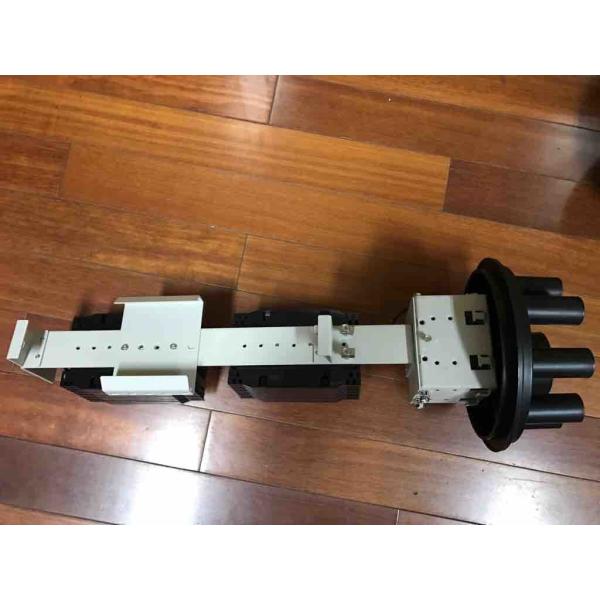

Fiber Optic Splice Closure (FOSC) is a member of dome series. The function of the product is in the optical transmission link, to provide various types of fiber optic cable through, branching, and related connecting protection,IP safety rate is IP68. This model has six small round ports and one large round port. The sealing component is made from vulcanized rubber. The sealing method adopts screw pressure. This model is suitable for different methods of branch connection,

including branching of uncut cables.It could be used for aerial, polemounting, wallmounting and underground application. This model is excellentin sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

Features:

1. Made from engineering plastic with high strength and anti-corrosion.

2. Suitable for wall-mounting or pole mounting application

3. 1pcs of large round port for uncut cable and 4pcs of small round port

4. Suitable for module type of PLC splitter with SC connector or LC connector, etc

5. Suitable for SC or LC connect or customized

6. Sealing method: mechanical sealing type

Specification:

Port 1×2,1×4,1×8,1×16,1×32,1×64, 2×4,2×8,2×16,2×32
Fiber Type G652D, G657A
Package Steel tube; ABS box
Input Fiber Type 900µm Loose tube, 2.0mm, 3.0mm, 250µm Ribbon Fiber, Adapter
Output Fiber Type 900µm Loose tube, 2.0mm, 3.0mm, 250µm Ribbon Fiber, Adapter
Pigtail Length 0.5–2.0m, Adapter, Others

Connector Type

FC/UPC, FC/APC, SC/UPC, SC/APC,ST/UPC, LC/UPC, LC/APC,

None, Others

Dimensions and Capability:


Dimensions ( L*W*H): 515mm*310mm
Maximum Capacity: Bundle – 24-288Cores
Cable Entrances: 1 in 6 out
Diameter of Cable: Φ5mm - Φ38mm.
NO. of trays: 1-12
Sealing Method:Mechanical

Operation conditions:

Temperatures: -40℃~+60℃
Humidity: ≤95% (at 40℃)
Air Pressure: 70kPa ~106kPa


312 Core Wall Mount Fiber Optic Splice Closure DOMO Type IP68 Waterproof312 Core Wall Mount Fiber Optic Splice Closure DOMO Type IP68 Waterproof312 Core Wall Mount Fiber Optic Splice Closure DOMO Type IP68 Waterproof
